Benefits
- Sustained dependability
- Maintenance-free
- Cost-effectiveness over time
- Straightforward installation and configuration

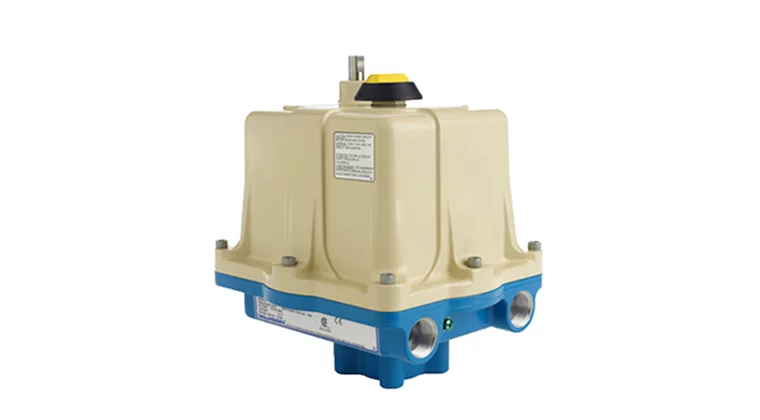

Valvcon™ electric actuators
The Valvcon V-Series is a dependable and sturdy electric actuator specifically designed for quarter-turn valve and damper applications. It comes in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. The actuator is equipped with high-quality standard features, such as all hardened steel spur gears, standard ISO 5211 mounting interfaces, and CSA (C US) certification. It is also CE compliant and approved for ATEX (WX models).
Features
- Compact and Lightweight
- Modular Design for Field-Installation of Options and Upgrades
- User-Friendly Electronics with Clearly Labeled Terminals and Coded Option Connectors
- High Standard Duty Cycle
- Standard Agency Approvals
- Wide Range of Options for Different Control Methods and Interface with Multiple Valve Types
Applications
- High-Duty Cycle Operations
- On/Off Services
- Automatic Cycling Applications
industries
- Food and Beverage Processing
- Water and Wastewater Treatment
- HVAC
- Boiler Blow-Down
- Pharmaceutical
Specifications
|
Series
|
V & LV
|
|
TORQUE OUTPUT
|
17-68 Nm, 150-600 lb-in, 12-50 lb-ft Series V
|
|
113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft Series LV
|
|
|
DUTY CYCLE*)
|
75% @ 40°C / 104°F
|
|
OPERATION
|
Reversing
|
|
ENCLOSURE**)
|
NEMA 4/4X or NEMA 4/4X/7&9
|
|
TEMPERATURE RANGE
|
-40°C to 66°C / -40°F to 150°F
|
|
ATEX Temperature range -20°C to 66°C / -4°F to 150°F
|
|
|
VOLTAGE
|
115VAC 50/60 Hz (1PH), 230VAC 50/60 Hz (1PH)
|
|
*) Duty Cycle is 55% for 3000 lb-in models**) CSA (C US) Certification and CE Compliance standard; NEMA 4/4X/7&9 models are Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III; and also certified to ATEX Directive 2014/34/EU: Ex db IIB T6 Gb, IECEx CSA 14.0057X.
|
