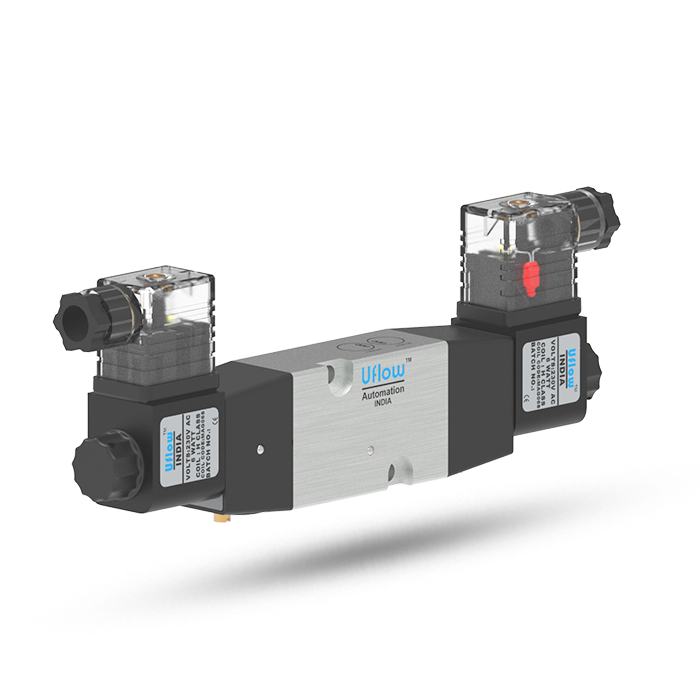

3/2 , 5/2 Double Solenoid Namur Valve
Model
- Model No: STA1DN , SFA1DN
- Type: 3X2 , 5X2
- Design: Spool with Cartridge Type
- Port Size: In/Exhaust – 1/4” BSP
- Media: Compressed Air, Filtered & Lubricated
- Working Pressure Range: 2 – 10 bar
- Ambient/Medium Temperature: 5°- 60° C
- Flow: 1200 lpm
- Materials of Construction: Aluminium, Nitrile, Brass, Polymer
Coil
- Coil Width: 26 mm
- Coil Bore: 10 mm
- Voltage (V) + 10%: AC (50Hz, 60Hz) – 24V, 110V, 230V DC 12V, 24V
- Power Consumption: AC-6W, DC-5W
- Duty Cycle: Continuous
- Class of Insulation: Class H
- Type of Coil Protection: IP65
Features
- Cartridge Type design for Long life
- Compact design
- Manual Override
- Single and Manifold Mounting
- Low Power Consumption
- Fast responce time at maximum 1500 cycle/ min
- Lubrication not essential
- Wide range of coil voltages
- 20 Lacs Cycle tested
