Application
- Isolation

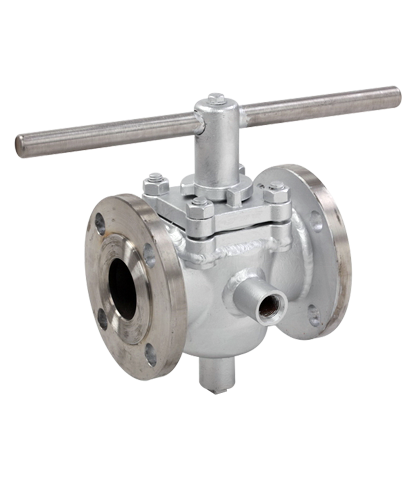

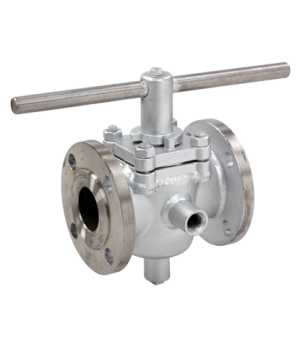

Jacketed Plug Valve
Features a full jacketed design with multiple connections for effective jacket drainage. Specially designed for the circulation of hot or cold liquids or gases. Bi-directional flow with an inline PTFE sleeve surrounding the plug. Unique body and plug design ensures low torque operation. Self-sealing design suitable for vacuum service with minimal maintenance costs. Cavity-free design ensures smooth and efficient performance
Features
- Ansi Class / Rating: 150#, 300#
- Design Standard: API 599
- Testing Standard: API 598, 100 % dielectrically spark tested
- F to F Standard: ASME B16.10
- End Connection Standard: ASME B16.5
- Ends: Flanged End, Socket Weld End
- Operation: Manual, Pneumatic, Electric
Size
- 15 mm to 300 mm
Materials
- Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc Plug , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc
- Sleeve : PTFE
- Jacket : MS, Stainless Steel
