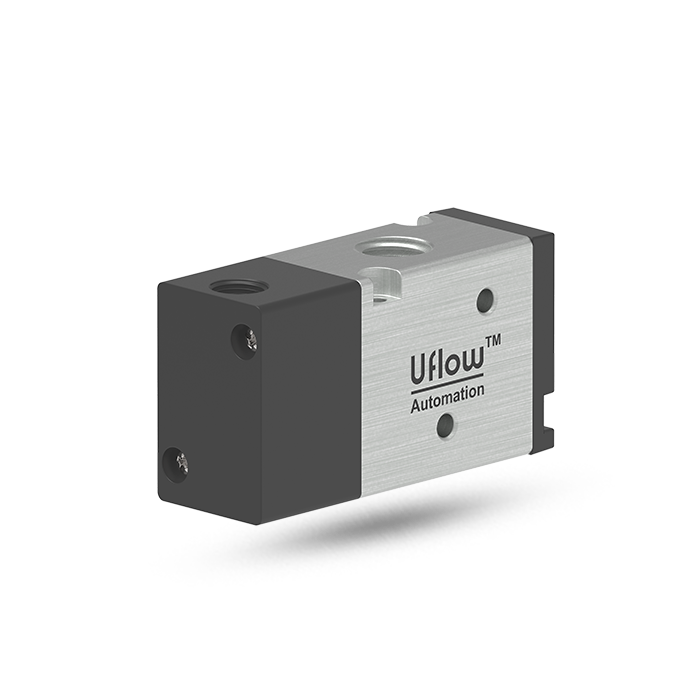

3/2 Single External Pilot Operated Valve With Spring Return (NC / NO)
Model
- Model No: ASA1BN04V0, ATA1BN04V0, AVA1BN04V0, ASA2BN04V0, ATA2BN04V0, AVA2BN04V0
- Type: 3X2
- Design: Spool with Cartridge Type
- Port Size: In/Out/Exhaust – 1/4” BSP & Pilot Port 1/8” BSP
- Media: Compressed Air, Filtered & Lubricated
- Working Pressure Range: 2 – 10 bar
- Ambient/Medium Temperature: 5°- 60° C
- Flow: 1200 LPM, 3500 LPM
- Materials of Construction: Aluminium, Nitrile, Brass, Polymer
- Pilot Pressure Range: 2.5 – 8 bar
Features
- Features
- Pneumatic Circuit Diagram
- Diagram & Dimension
