Application
- Non Return Flow

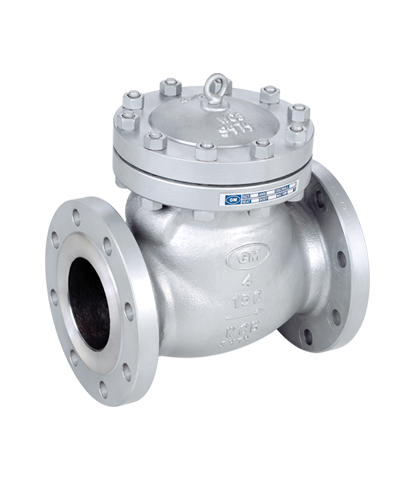

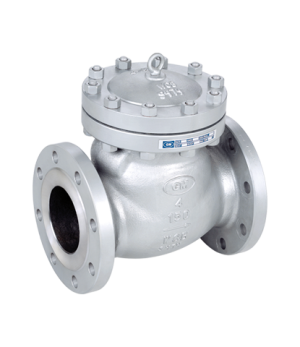

Swing Check Valve
Features
- The valves are designed as Swing Type
- They come equipped with Lifting Bolt for easy installation
- Ansi Class / Rating: 150#, 300#, 600#
- Design Standard: BS 1868, API 6D
- Testing Standard: API 598, ISO 5208
- F to F Standard: ASME B16.10
- End Connection Standard: ASME B16.5
- Ends: Flanged End, Butt Weld End
- Operation: Auto
Size
- 50 mm to 600 mm
Materials
- Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
- Trim : 13 % Cr, Stellite etc
