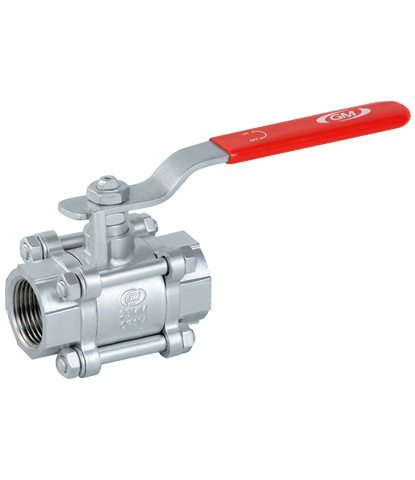

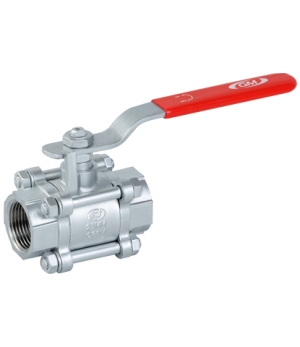

Ball Valve 3PC Design Screwed end / Socket end
Features
- Full Bore, Reduce Bore Blow Out Proof Stem Low Torque, Anti-static Device,
Extended Stem, Floating Ball, Fire Safe Test Requirement as per API 607 & API 6FA
Mounting Pad on request
- Ansi Class / Rating: 150# , 300#, 600#, 800#
- Design Standard: BS EN ISO 17292
- Testing Standard: API 598, ISO 5208
- F to F Standard: Manufacturing standard
- Ends: Screwed End, Socket Weld End
- Operation: Mannual, Gear, Pneumatic, Electric, etc
Materials
- Body : A105, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc
- Seat : PTFE , RPTFE, GFT, CFT, Peek etc
