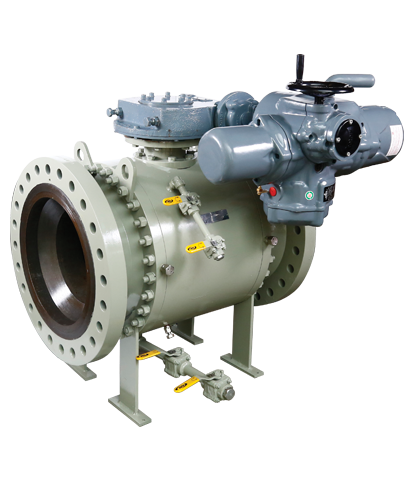

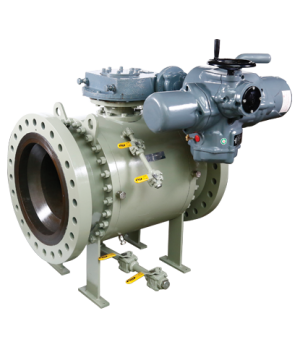

Forged Trunnion Mounted Ball Valve

Categories: ,

Application

  • Isolation

Features

  • Full Bore
  • Reduce Bore
  • Blow Out Proof Stem
  • Low Torque
  • Antistatic Device
  • Spring Loaded Seat
  • Stem Extension
  • Locking Device
  • Double Block & Bleed
  • Drain & Vent
  • Self Relieving Seat / Double Piston Seat
  • Corrosion Resistant Low Friction Bearing
  • Emergency Sealant Injection
  • Trunnion Mounted Design Stem
  • Fire Safe Test Requirement as per API 607 & API 6FA
  • Ansi Class / Rating: 150#, 300#, 600#, 900#
  • Design Standard: API 6D, BS EN ISO 17292, ASME B16.34
  • Testing Standard: API 6D, API 607, API 6FA
  • F to F Standard: API6D, ASME B16.10
  • End Connection Standard: ASME B16.5, ASME B16.47
  • Ends: Flanged End, Butt Weld End, Ring Type Joint
  • Operation: Mannual with Gear, Pneumatic, Electric, Gas Over Oil, Gas Powered, Hydraulically Operated, etc

Size

  • 50 mm to 1200 mm

Materials

  • Body: A105, LF2, LF6, F304, F316, etc.
  • Seat: RPTFE, GFT, CFT, Viton, Peek, Devlon, etc.
