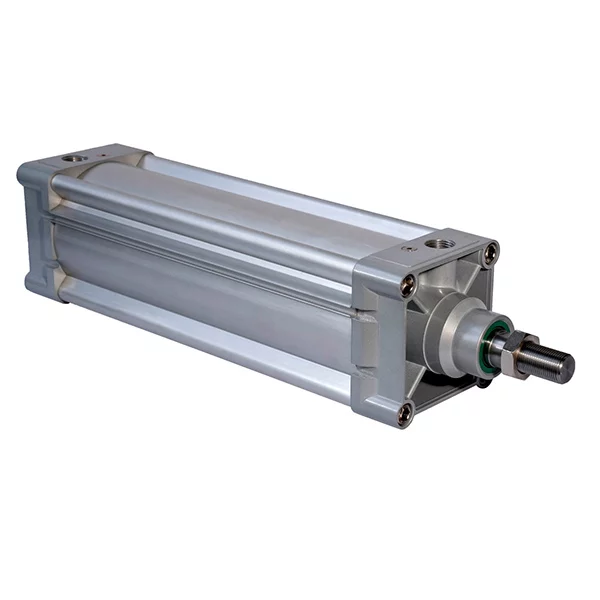

Neles Easyflow™ piston-barrel linear actuators, series SC

The Neles Easyflow SC series of piston-barrel linear actuators offers a combination of high cycle life, rugged construction, and compliance with ISO 15552 & VDMA 24562 standards, along with a unique range of features and options. These actuators are specifically designed for fast operation of gate valves, globe valves, dampers, and other linear type valves.

Categories: ,


  • Cylinder barrel made of extruded profile aluminum with micro honing for extremely low friction
  • Adjustable cushioning at both ends
  • Safe and easy maintenance
  • Suitable for various services
  • Rugged design
  • Wide thrust range
  • Standard permanent magnet


  • Factory automation and general process applications
  • High cycle life control and on-off applications
  • Emergency shutdown


Pneumatic piston-barrel type linear actuator
Double acting (For spring return version consult Neles)
Max. operating pressure:
10 bar
Force range:
69N to 7850 N
Temperature range:
-20 to +80 °C (For high & low temp. version, consult Neles)
Protection class:
IP 67
Mounting interface:
ISO 15552 VDMA 24562
SIL 3 capable
