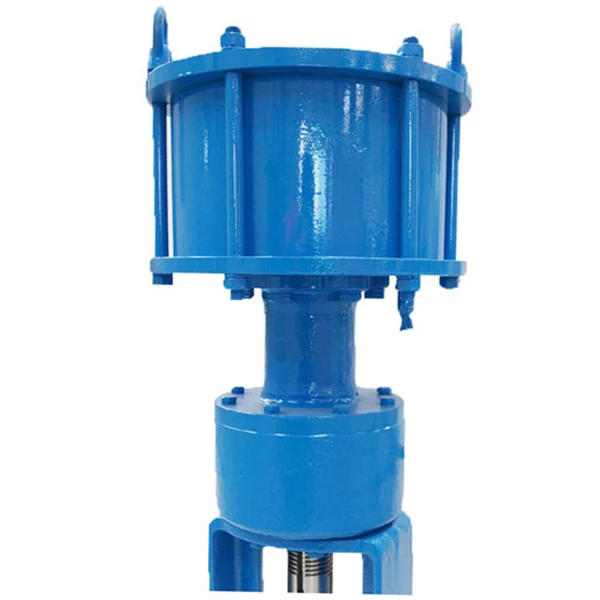

Neles™ pneumatic linear cylinder actuator, series VC

The Neles VC series double-acting piston-type linear actuators are suitable for modulating control and on-off service. They provide a long cycle life and are well-suited for operating linear valves that require medium to high thrust.

Categories: ,


  • These actuators offer precise control and operate with low friction, resulting in high control performance
  • The actuators have a simple and cost-effective design, which ensures a longer lifetime and higher reliability
  • The actuators have low maintenance requirements, which translates into simpler maintenance procedures and lower costs


  • Designed for linear modulating control and on/off applications with heavy-duty performance
  • Corrosion-resistant coating for severe weather, chemical, and petroleum environments
  • Wide range of thrust capacity
  • Self-lubricating piston seal in cylinder for high thrust performance
  • Optional handwheel for manual mode, volume tank, and volume chamber available
  • Mechanical position limitation
  • Safe and easy maintenance
  • Suitable for various applications from general to severe service
  • Suitable for safety integrated systems up to and including SIL 3 in accordance with IEC 61508


Pneumatic cylinder actuator
VC – double acting
Operating pressure:
2.0 – 10 bar / 29 – 145 psi
Temperature range:
-30 … +85 °C / -22 … +185 °F
Output thrust:
27480 – 264860 N / 6177 – 59542 lb.f
