Neles™ heavy duty scotch yoke actuator, series N1

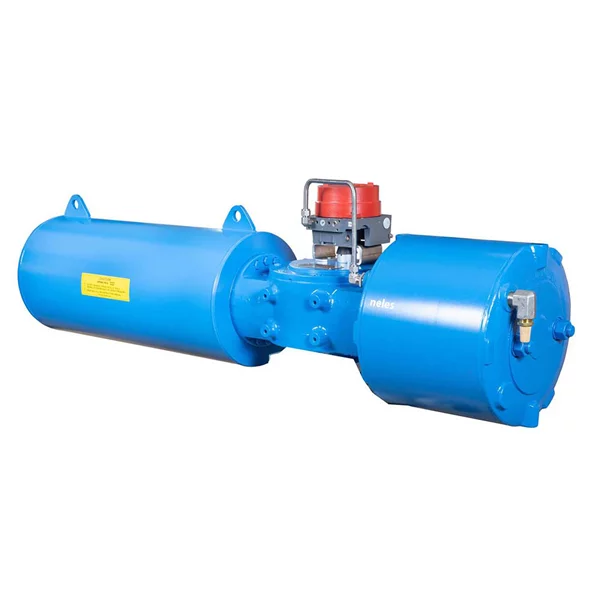

Neles has developed the N1 series scotch yoke actuator, which is ideal for operating quarter turn valves in modulating control and on-off service. Its tough construction is equipped with exclusive elements like an internal tie-rod mechanism that ensures extended lifespan even in challenging conditions. This sturdy actuator has received all the necessary approvals to fulfill both industry standards and customers’ process needs.

Categories: ,

Benefits

  • Solid bearing ensures better piston rod alignment and smooth operation
  • The tie rods are enclosed in the cylinder providing highest corrosion protection and the best performance
  • Full range of accessories: switchboxes, positioners, safety solenoids (ESD, PST) and customized control panels
  • Modular design allows the flexibility of configuring the actuator in either CW or CCW / fail open or fail close functions

Features

  • Suitable for on/off, modulating and control valve applications in general service, protective service and safety applications eg. ESD or HIPPS
  • Ductile cast iron center body, fabricated carbon steel power and spring module provides rugged actuator construction. Alternative materials available upon request
  • Suitable for safety integrated systems up to and including SIL 3 accordance with IEC 61508
  • The vent valve has built in non-return function for IP67
  • Secondary vent valve function is to detect leakages in the rod seal area of pneumatic cylinder
  • Springs are non buckling, lifetime lubricated and epoxy coated
  • Ball bearing, flexi joint and the hardened yoke thrust pin bearing are all incorporated into the actuator for longer life time, smoother operation

Specifications

Type:
Pneumatic piston type quarter turn actuator
Spring return or double acting versions
Supply medium:
Air, natural gas (sweet), nitrogen
Torque range:
25 Nm – 218765 Nm @ 4 bar, max up to 700000 Nm
Temperature ranges:
-20 … +80 °C normal, -20…+125 °C high
Protection class:
IP66M/IP67M (IEC 60529)
ATEX class:
Ex 2G IIC T6 / Ex 2D IIC T80C
Mounting face:
ISO 5211, VDI/VDE 3845

Downloads

  • Technical bulletins
  • Installation, maintenance and operation manuals
