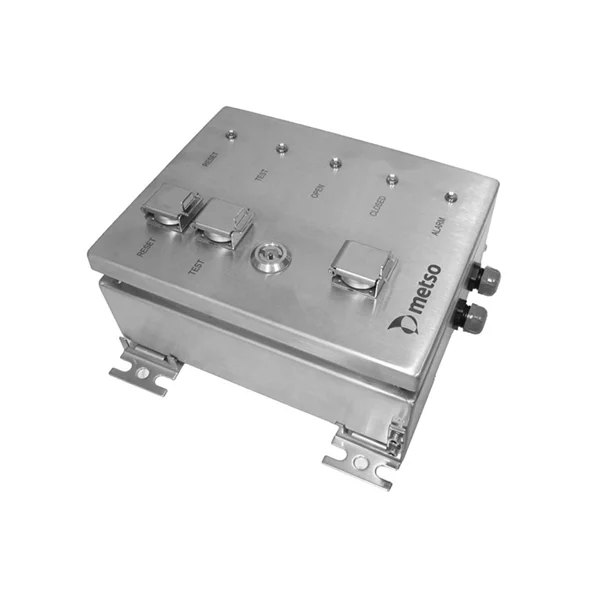

LCP9H for Neles™ ValvGuard™ VG9000

The Local Control Panel (LCP) is specifically designed to control the Emergency Shutdown (ESD) or Emergency Safety Valve (ESV) locally, in close proximity to the valve, using the Neles ValvGuard VG9000 intelligent solenoid valve. The LCP allows for local closure or opening of the ESD/ESV and enables the valve to return to its normal operating position when the trip initiators are back to normal. It also features a Manual Reset function.

Category: Tags: ,

Features

  • Perform partial stroke testing (PST) with the nearby push button
  • ESD valve can be manually reset
  • Can be powered by 24 VDC externally or loop powered via VG9000H (minimum 8 mA)
  • LED indicators for valve open/close
  • LED status indicator for alarm/fault
  • LED indicator for ready-to-reset status
  • Achieve up to SIL3 according to IEC 61508 when used with VG9000H.

Benefits

  • The LCP9H local control panel offers local status information for the ESD valve and enables partial stroke testing to be conducted near the valve. It also includes manual reset functionality, eliminating the need for additional instrumentation.
