Benifits
- Extended lifespan
- Rapid and delicate reaction
- Consistent design across the entire product line

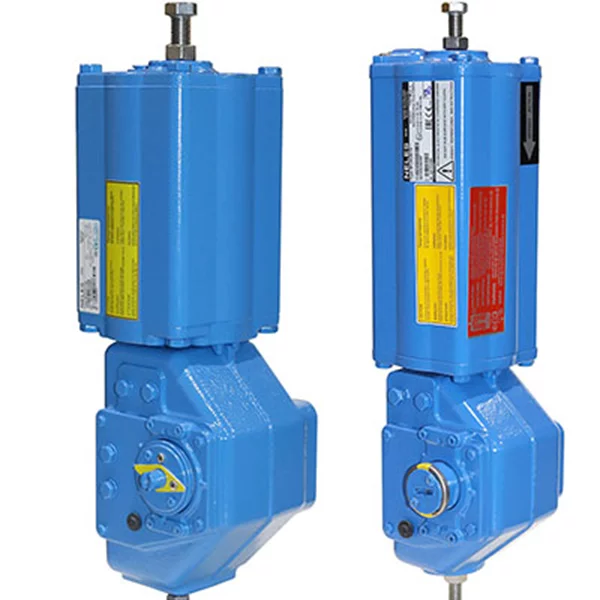

Neles™ pneumatic cylinder actuators, series B1
The B1-series piston type quarter turn actuators from Neles are engineered to serve both modulating control and on-off functions with double acting and spring return capabilities. They exhibit a remarkable lifespan and are suitable for operating a wide range of rotary valves.
Characteristics
- Resistant to wear and corrosion
- Safe and effortless maintenance
- Applicable for a broad spectrum of services, ranging from control to challenging ESD and arctic conditions
- Abundant optional features
- Sturdy construction
- Large torque range
- Type approval in accordance with EN 15714-3
Applications
- Emergency shutdown
- Compressor anti-surge
- High-cycle control and on-off applications
- High-precision control
- Service in arctic conditions
Specifications
|
Type:
|
Pneumatic cylinder actuator
|
|
|
Series:
|
B1C – double action
|
|
|
|
B1J – spring return
|
|
|
Supply pressure:
|
2.8 – 10 bar
|
|
|
Torque range:
|
28 – 100000 Nm
|
|
|
Temperature ranges:
|
-55 to +120 °C
|
|
|
Protection class:
|
IP66, IP67 (IEC 60529)
|
|
|
ATEX class:
|
Ex II 2G/D c IIC TX
|
|
|
Mounting face:
|
ISO 5211, VDI/VDE 3845
|
