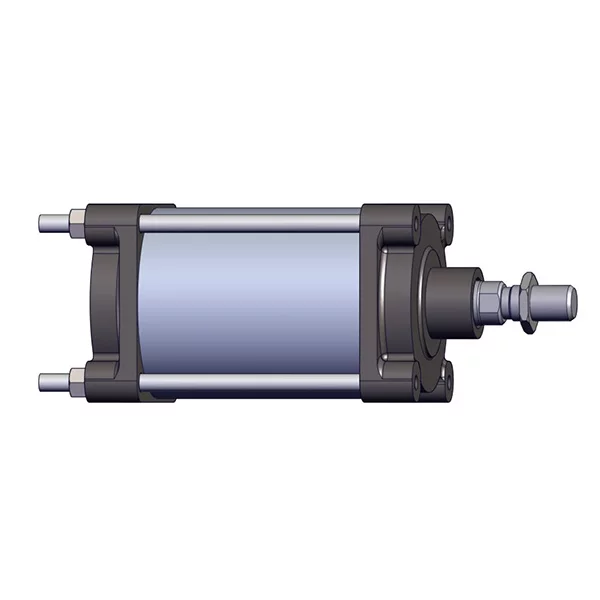

Neles Easyflow™ piston-barrel linear actuators, series AC

The Neles Easyflow AC series is a heavy-duty piston-barrel linear actuator that offers a unique range of features and options. With a rugged construction and an extremely compact design, these actuators are designed for fast operation of gate valves, globe valves, dampers, and other linear type valves. They have a high cycle life and are lifetime lubricated with Quad seals, ensuring low friction and a long life.

Categories: ,


  • Cylinder barrel made from extruded profile aluminum/steel with micro honing for extremely low friction
  • Adjustable cushioning at both ends
  • Lifetime lubricated with Quad seals, ensuring low friction and a very long life
  • Safe and easy maintenance
  • Suitable for various services
  • Rugged design
  • Wide thrust range
  • Heavy-duty mounting manufactured in steel and casting iron


  • Factory automation and general process applications
  • High cycle life control and on-off applications
  • Emergency shutdown.


Series: Pneumatic piston-barrel type linear actuator
Version: Double acting (For spring return version consult Neles)
Max. operating pressure: 10 bar
Force range: 453 N to 96220 N
Temperature range: -20 to +80 °C (For high & low temperature version, consult Neles)
Protection class: IP 67
Certificate: SIL 3 capable


  • Technical bulletins
  • Installation, maintenance and operating instructions
