Benefits
- Avoid pressure surges in the molecular sieve reactor
- Stainless steel construction suitable for wet media
- Equipped with a heating jacket for use in cold regions

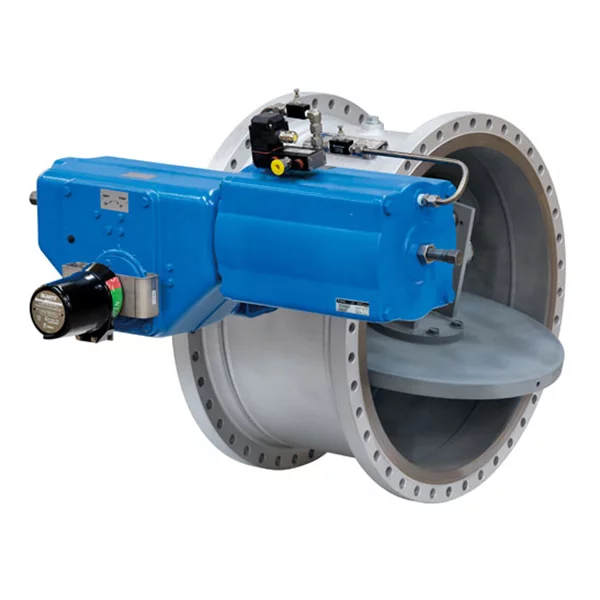

Neles™ three lever valve for Air Separation Units (ASU), series BH
The Neles lever valves are specifically designed for use as an air inlet shut-off valve in air separation units. They are equipped with a self-locking safety mechanism that ensures proper function within a specified differential pressure range. The lever arrangement is designed to minimize friction during valve operation. The sealing sections are engineered to resist abrasion wear, resulting in a remarkably low torque level.
Features
- Offers high flow capacity
- Soft and metal sealing options available
- Available in carbon and stainless steel material
- The valve is inherently safe and opens only under precise differential pressure
- Option for heating jacket construction
Applications
- Air Separation Units (ASU)
- Molecular sieve
Specifications
|
Size range
|
DN 200 – 1600 / 8″ – 64″
|
|
Temperature
|
Max. +260 ºC
|
|
Pressure classes
|
PN 10 – 40, ASME Class 150 & 300 drillings available
|
